Fiberglass mesh fabric Laid Scrims 68tex for PVC flooring
Fiberglass mesh fabric Laid Scrims 68tex for PVC flooring Brief Introduction

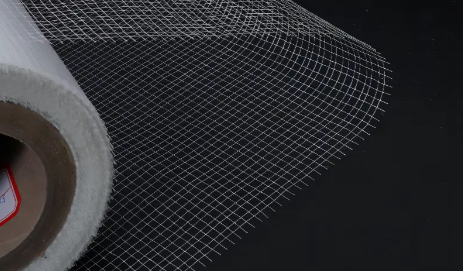

A cost-effective, open-mesh reinforcement fabric built on 68tex E-glass filament yarn in a chemically bonded, flat-laid construction — this fiberglass laid scrim is positioned for PVC flooring reinforcement (both sheet and roller types), where it laminates into the PVC stack to counteract thermal expansion and contraction and prevent joint separation or surface bulging between floor pieces. Ruifiber makes these scrims to order for specific usages; the chemically bonded, non-woven-yarn process gives the scrim lightweight, high strength, low shrinkage/low elongation, and corrosion resistance, and it is designed to be highly compatible with the customer's calender/extrusion/laminating process.
Fiberglass Laid Scrims Characteristics
PVC-Flooring Grade Glass Properties: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, water resistance — the 68tex E-glass scrim survives the heat of calendering/extrusion and long-term indoor service, while its low elongation restrains differential movement between floor pieces caused by thermal expansion and contraction.
Long Rolls for PVC Calender / Extrusion Lines: Roll width 200–2,500 mm; regular 10,000 m/roll (platform up to 50,000 m). Fewer splices per shift on high-speed laminating, calendering, and slitting lines feeding PVC sheet/roller flooring mills — higher yield, better batch appearance, matching the page note that laid scrims "permit our customers to reinforce their products in a very economical manner."
Fiberglass Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Fiberglass Laid Scrims Application

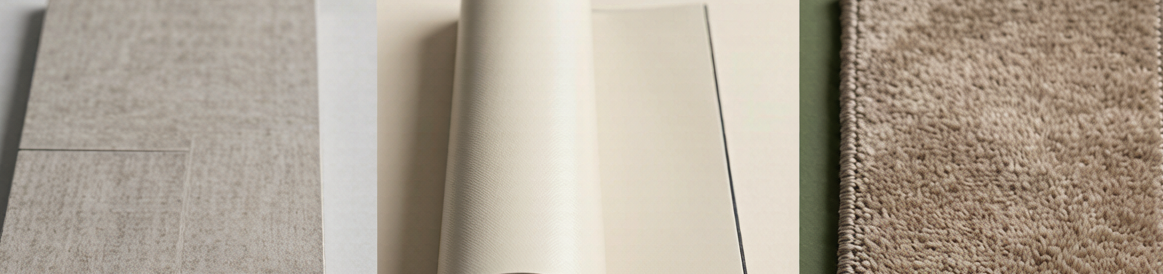

Primary Use: Reinforcement Layer in PVC Flooring (Sheet & Roller)
The core application of this 68tex fiberglass laid scrim is as the reinforcement layer laminated into PVC flooring — both PVC Sheet Floor and PVC Roller Floor, produced by calendering, extrusion, or other manufacture progress. It is laminated into the PVC stack to:
Prevent Joint Separation & Bulge from Thermal Expansion
PVC flooring materials expand and contract with temperature. The scrim's low elongation and multi-directional tensile restrain differential movement between adjacent floor pieces, avoiding joint gaps or surface bulging that compromise floor appearance and function.
Improve Throughput on PVC Lines
10,000 m/roll (platform 50,000 m) feeds high-speed calender/extrusion/laminating lines with fewer splice stops — higher yield per shift, more consistent batch appearance on finished flooring rolls/sheets.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
