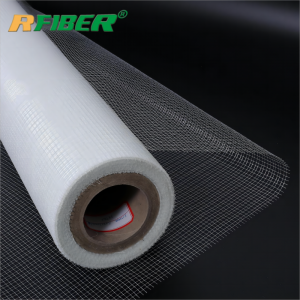

Fiberglass Laid Scrim CF5*5PH High Strength 34 TEX Glass for Thermal Insulation and Aluminum Foil Composite
Fiberglass Laid Scrims Brief Introduction
Shanghai Ruifiber Industry Co.,ltd is the manufacturer who produce laid scrim in China since 2018. So far, we're able to produce around 50 different items for different areas. The main prodcuts include fiberglass laid scrim, polyester laid scrim, triaxial scrims, composites mats etc.
The glass fiber laid scrim, polyester laid scrim, three - ways laid scrim and composite products main ranges of applications: Aluminium Foil Composite, Pipeline Wrapping, Adhesive tape, Paper bags with windows, PE film laminated, PVC/wooden flooring, Carpets, Automotive, lightweight construction, packaging, building, filter/non-wovens, sports etc.
Fiberglass Laid Scrims Characteristics
Alkali-Resistant Coating: Features a specialized coating (indicated by 'PH') that protects the glass fibers from the corrosive high-alkaline environment of cement-based plasters and adhesives, ensuring long-term strength retention.
High Strength & Stability: The laid scrim construction using 34 TEX yarns provides balanced, multi-directional tensile strength and exceptional dimensional stability with minimal elongation.
Dual-Function Design: Optimized for both bonding with cementitious matrices in construction and with polymer coatings or adhesives in foil composites.
The Fiberglass Laid Scrim CF5*5PH (34 TEX) is a purpose-built reinforcement fabric that addresses core durability challenges in both construction and composite materials. Its combination of a high-strength glass scrim and a protective alkali-resistant coating makes it an indispensable component for creating crack-free building facades and high-performance, tear-resistant aluminum foil composites.
Fiberglass Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Fiberglass Laid Scrims Application
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
