Triaxial Laid Scrim Netting 5x5x5mm Mesh Fiberglass with PVOH Binder
Triaxial Laid Scrim Brief Introduction
Chemically bonded flat-laid E-glass scrim in a true triaxial (three-way) 5×5×5 mm grid, bonded with PVOH binder. Three sets of yarns at 60° give equal tensile in all planar directions — unlike square scrims that are weaker on the bias. Lightweight (~15.2 g/m²), low elongation, high modulus, fully bondable with foil, PVC, PE, non-woven, and foam.
Triaxial Laid Scrim Characteristics
Triaxial advantage: Equal tensile 0°/60°/120° → no bias weakness, superior tear arrest at seams, corners, and fastener zones; ideal where load direction is unpredictable (ducts, pipes, automotive, tarps).
PVOH binder: Water-soluble, clean burnout if later coated/baked, strong green-bond for calender/laminate lines.
Long roll 10,000 m: fewer splices on high-speed lines, better batch appearance.
Triaxial Laid Scrim Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Triaxial Laid Scrim Application
Primary – Multi-directional reinforcement where bias strength matters

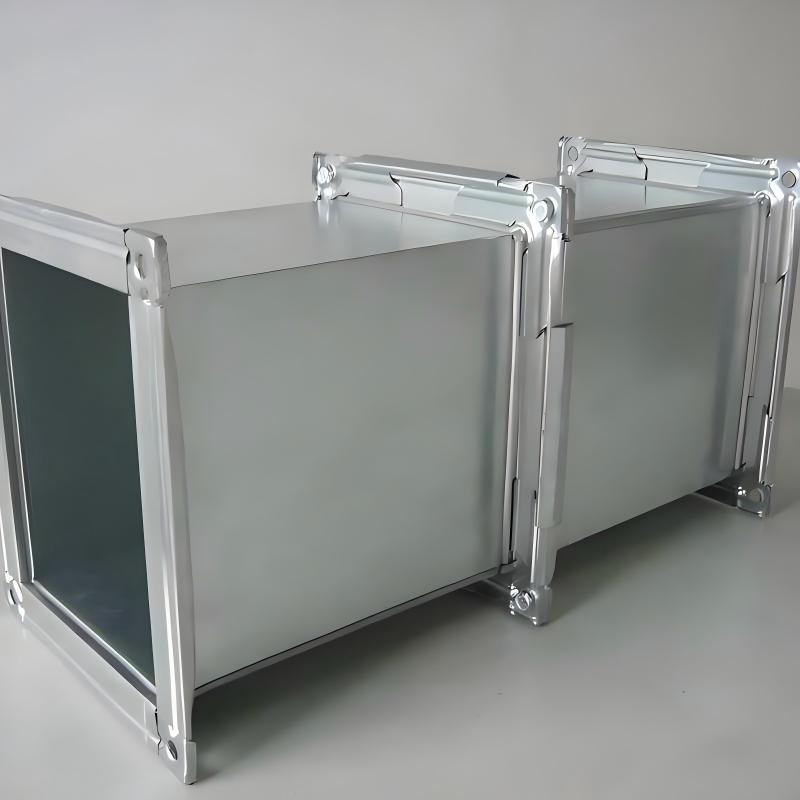

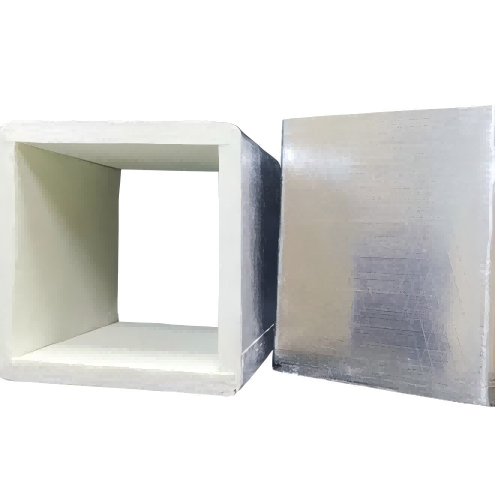

HVAC duct boards, pipeline wrapping, aluminum foil FSK facing, automotive interior (door/headliner/seat), PVC flooring, tarpaulin/sail cloth, adhesive tape. Triaxial layout stops tear running diagonally across square-scrim weak axis.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
