Fiberglass stretch mesh fabric Laid Scrims for aluminum foil insulation
Fiberglass stretch mesh fabric Laid Scrims Introduction

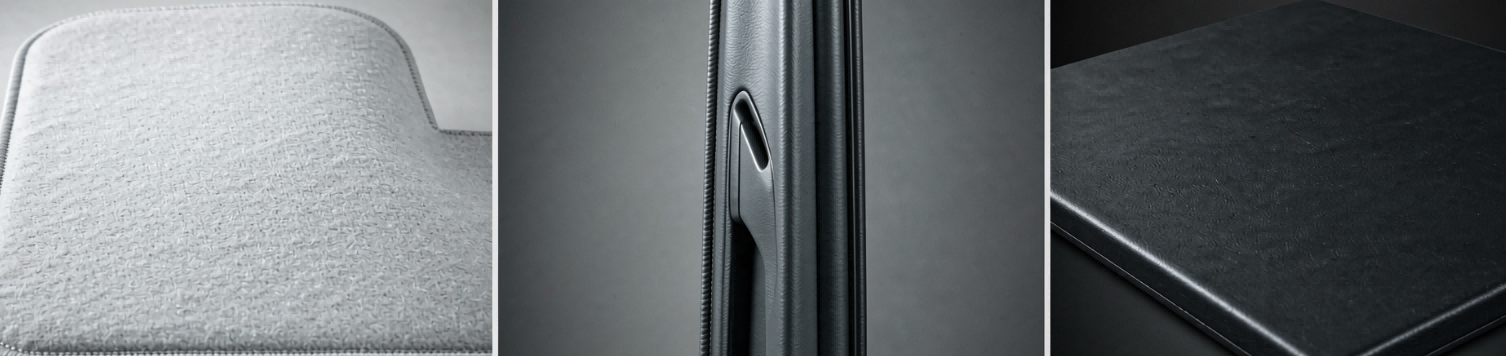

A chemically bonded, flat-laid glass fiber scrim engineered as a cost-effective tensile grid for automotive interior composites. Made from continuous filament yarn in an open mesh construction, it is designed to be laminated into or between the non-woven / PP / GMT stacks forming interior trim panels — headliners, door linings, rear shelves, seat backs, wheel-arch liners, undershields, and engine casing/sound deadening parts. Ruifiber makes these scrims to order; the construction yields lightweight, high tensile strength, low shrinkage/elongation, dimensional stability, and corrosion resistance, with properties including alkali resistance, tear resistance, fire resistance, anti-microbial, and water resistance. It permits economical reinforcement and is highly compatible with automotive laminating, calendering, and thermoforming processes.
Fiberglass stretch mesh fabric Laid Scrims Characteristics
Automotive interior grade: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial, water resistance — low elongation prevents non-woven/PP/GMT panels from sagging, wrinkling, or tearing at fastener zones under cabin thermal cycles (-40 °C to >100 °C) and vibration.
Data sheet: CF12.5×12.5PH 6.2–6.6 g/m² / CF10×10PH 8–9 / CF6.25×6.25PH 12–13.2 / CF5×5PH 15.2; regular mesh & grams as above. Fully bondable with PP, PET, PUR/PE foam, decorative films.
Long rolls: 10,000 m/roll (platform up to 50,000 m) — fewer splices on tier-1 interior lines, better batch appearance.
Fiberglass stretch mesh fabric Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Fiberglass stretch mesh fabric Laid Scrims Application
Primary – Automotive interior reinforcement
Laminated into non-woven/PP/GMT stacks for headliners, door linings, rear shelves, seat backs, wheel-arch liners, undershields, foams punched parts, engine casing & sound deadening. Stops sag at grab handles/sunshades, restrains fastener-zone tear, preserves gap lines through press-forming and cabin thermal cycles. 50,000 m rolls feed headliner/door-lining/rear-shelf lines with fewer splice stops.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
