Polyester stretch mesh fabric Laid Scrims for Adhesive Tape
Polyester Laid Scrims Brief Introduction
A chemically bonded, flat-laid open-mesh fabric made from continuous filament yarn, engineered as a flexible reinforcement and laminating substrate for adhesive tape and related flexible composite products. The laid scrim process bonds non-woven yarns into a stable mesh that combines stretchability, dimensional stability, and high tensile strength — allowing the finished tape to stretch with the substrate while resisting tear propagation and elongation creep. It is designed to be easily laminated with adhesives, films, and non-woven backings, serving as the hidden tensile grid in single-sided, double-sided, and specialty adhesive tapes.
Polyester Laid Scrims Characteristics
Tape-grade properties: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial, water resistance — the stretch mesh balances flexibility with controlled elongation, preventing tape edge-tear, substrate separation, and adhesive squeeze-out under tension.
Data sheet: CF12.5×12.5PH 6.2–6.6 g/m² / CF10×10PH 8–9 / CF6.25×6.25PH 12–13.2 / CF5×5PH 15.2; regular mesh & grams as above. Fully bondable with adhesive coatings, PET/PP films, non-woven backings.
Long roll 10,000 m (platform 50,000 m): fewer splices on tape coating and slitting lines, better batch appearance.
Polyester Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Polyester Laid Scrims Application

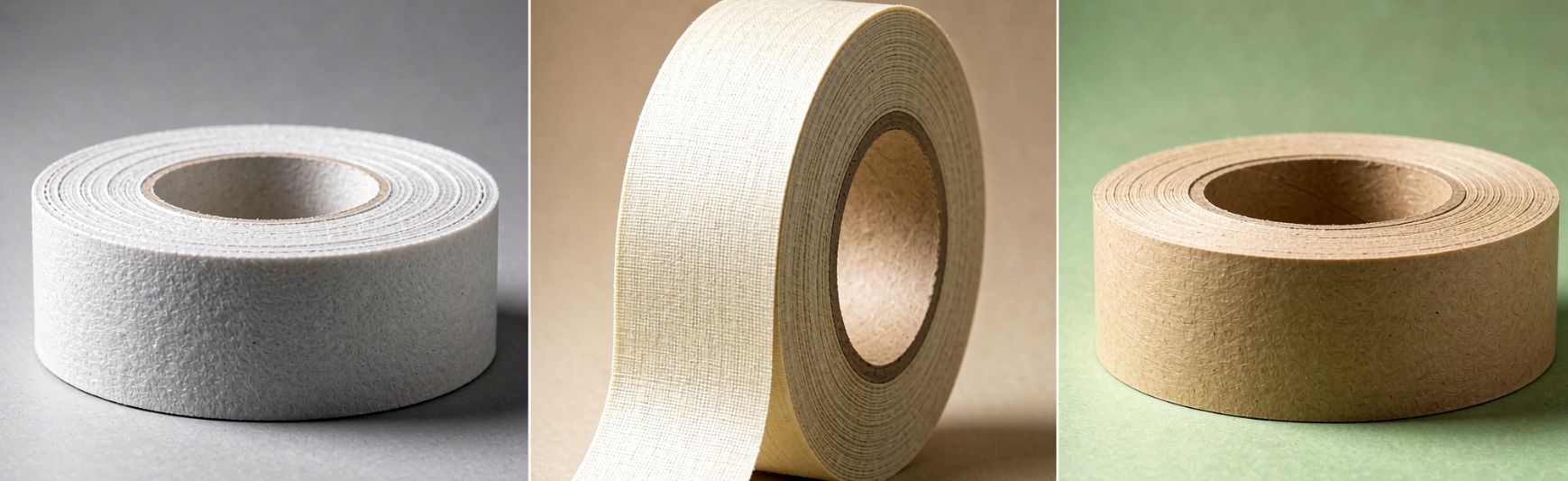

Primary – Adhesive tape reinforcement
Laminated behind or between adhesive layers as the tensile grid in double-sided foam tape, duct tape, masking tape, filament tape, and specialty industrial tapes. Prevents tape stretching/creep under load, reinforces edges during slitting and application, and maintains bond-line integrity on curved or dynamic substrates. 10,000 m rolls feed tape coating and slitting lines with fewer stops.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
