Non-woven laid scrims 3*3 ENDS-10MM (3.3×3.3 MM)
Non-woven laid scrims Introduction
This product is a fine-grid Laid Scrim (available in Glass, Polyester, or hybrid), built on a 3×3 ENDS per 10 mm dense square-mesh layout (3.3×3.3 mm grid) — the finest mesh pitch in the platform's regular range, positioned for thin-substrate laminates where a very open grid would show through or fail to arrest fine tears. It is made by chemically bonding continuous filament yarns (Glass, Polyester, Carbon, Cotton, Flax, Jute, Viscose, Kevlar, Nomex, etc.) into a flat-laid open mesh, then supplied as a standalone roll or laminated carrier for integration into foil, non-woven, thin tissue, and technical textile stacks. The chemically bonded, non-woven-yarn construction gives the scrim lightweight, high strength, low shrinkage/low elongation, and corrosion resistance.
Non-woven laid scrims Characteristics
Fine-Grid (3.3×3.3 mm) Property Profile: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, water resistance — the dense 3×3 ENDS layout delivers refined crack-arrest on thin substrates (foil, thin non-woven, tissue, medical paper) where coarser grids would telegraph through or leave too-wide tear mouths.
High Strength & Light Weight: Available in a range of regular mesh sizes and grammages covering the platform's common specifications (3.3×3.3 /12.5×12.5/10×10/6.25×6.25/5×5/12.5×6.25 mm etc.; regular supply grams 6.5g/8g/13g/15.5g etc.), delivering high tensile and tear resistance at minimal added weight. Fully bondable with almost any material; each roll length 10,000 m to support efficient production.
Long Rolls for Fine-Substrate Converting Lines: 10,000 m roll length feeds high-speed laminating, foil-kraft laminating, and slitting lines with fewer splice stops — fewer weak spots in finished rolls, better batch appearance, especially on thin-substrate programs (foil, medical paper, thin non-woven) where splice frequency directly shows on the end product.
Non-woven laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Non-woven laid scrims Application
Primary Use: Reinforcement for Thin-Substrate Laminates

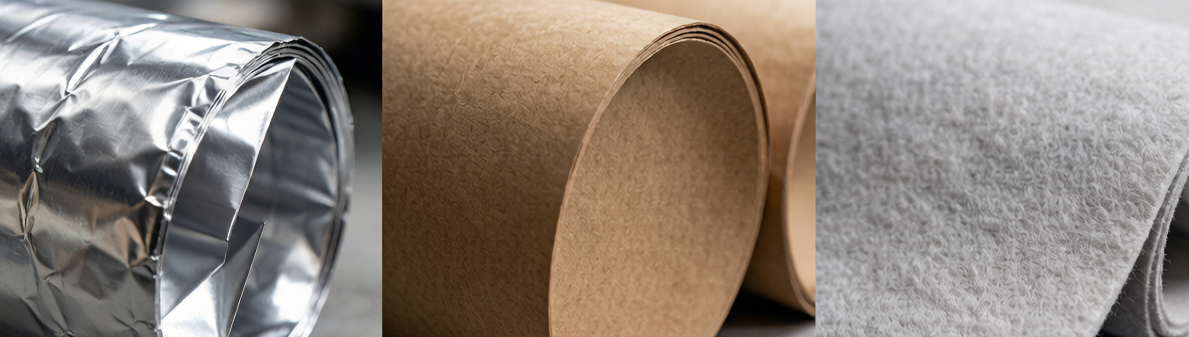

The core application of this 3×3 ENDS (3.3×3.3 mm) fine-grid laid scrim is as the hidden tensile grid laminated into or between thin-host stacks — aluminum foil–kraft, thin non-woven, tissue, medical paper, and light technical textile laminates — where a coarser mesh would telegraph through the face or leave too-wide tear mouths. It is laminated into the host stack to:
Refined Tear Arrest on Thin Substrates
The core application of this 3×3 ENDS (3.3×3.3 mm) fine-grid laid scrim is as the hidden tensile grid laminated into or between thin-host stacks — aluminum foil–kraft, thin non-woven, tissue, medical paper, and light technical textile laminates — where a coarser mesh would telegraph through the face or leave too-wide tear mouths. It is laminated into the host stack to:
Support High-Speed Thin-Substrate Lines
The core application of this 3×3 ENDS (3.3×3.3 mm) fine-grid laid scrim is as the hidden tensile grid laminated into or between thin-host stacks — aluminum foil–kraft, thin non-woven, tissue, medical paper, and light technical textile laminates — where a coarser mesh would telegraph through the face or leave too-wide tear mouths. It is laminated into the host stack to:
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
