Non-woven laid scrims 1.6*1.6 ENDS-10MM (6.25×6.25MM)
Non-woven laid scrims Brief Introduction
This product is a Polyester Laid Scrim, a cost-effective, open-mesh reinforcement fabric built on a 1.6×1.6 ENDS per 10 mm square-mesh layout (6.25×6.25 mm grid), positioned as a mid-fine grid for general laminating where balanced tear arrest and surface smoothness are both needed. It is made by chemically bonding continuous polyester filament yarns into a flat-laid open mesh (square or tri-directional optional), with binder options (PVOH, PVC, Acrylic, or customized) to match foil–kraft, non-woven, PVC, and technical textile laminating lines. Compared with glass-fiber scrims, the polyester version offers softer hand-feel, heat sealability, and better compatibility with acrylic/rubber coatings — useful when the laminate must stay flexible or go through thermal bonding.
Non-woven laid scrims Characteristics
6.25×6.25 mm Mid-Fine Square Properties: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, water resistance — and with polyester yarn, additional heat sealability and softer hand. The 1.6×1.6 ENDS layout delivers balanced crack-arrest on medium substrates (foil–kraft, non-woven mats, PVC flooring carriers, light technical textiles) without the grid telegraphing that coarser meshes can cause on thinner faces.
High Strength & Light Weight: Available in a range of regular mesh sizes and grammages covering the platform's common specifications (12.5×12.5 / 10×10 / 6.25×6.25 / 5×5 / 12.5×6.25 mm etc.; regular supply grams 6.5g / 8g / 13g / 15.5g etc., with CF6.25×6.25PH at 12–13.2 g/m²). High strength-to-weight, fully bondable with almost any material; each roll length 10,000 m to support efficient production.
Non-woven laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Non-woven laid scrims Application
Primary Use: Mid-Fine Grid Reinforcement for Foil, Non-Woven, PVC & General Laminating
The core application of this 1.6×1.6 ENDS (6.25×6.25 mm) polyester laid scrim is as the hidden tensile grid laminated into or between foil–kraft, non-woven mats, PVC flooring carriers, and light technical textile stacks where a converter wants balanced tear arrest at moderate GSM without grid telegraph. It is laminated into the host stack to upgrade mechanical performance at very low added weight, turning fragile or limp substrates into composites that survive handling, converting, and in-service loads. 6.25×6.25 mm sits in the regular supply mid-fine slot on the site's data sheet (alongside 12.5×12.5 / 10×10 / 5×5 / 12.5×6.25 mm), making it a default mid-density option for general laminating programs.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.

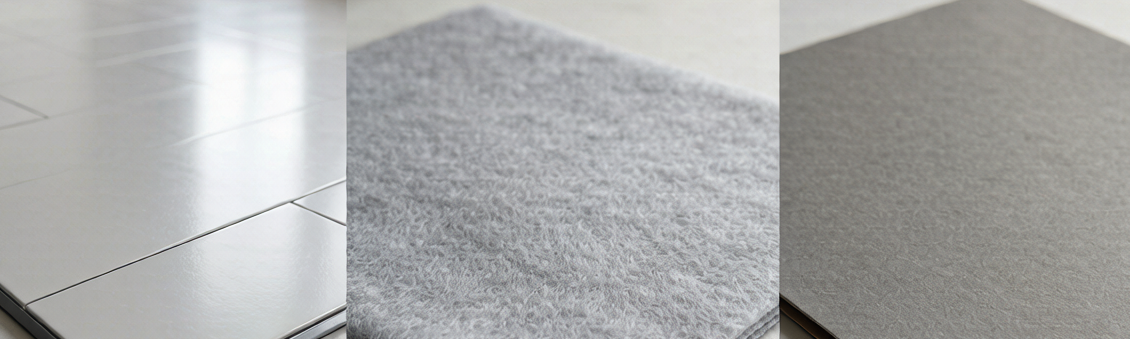

b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
