Fiberglass non-woven laid scrims 0.8*0.8 ENDS-10MM 12.5×12.5 MM
Fiberglass non-woven laid scrims Brief Introduction
This product is a Laid Scrim (available in Polyester, Glass, or hybrid), a cost-effective, open-mesh reinforcement fabric built on a 0.8×0.8 ENDS per 10 mm square-mesh layout (12.5×12.5 mm grid). It is made by chemically bonding continuous filament yarns (Polyester, Glass, Carbon, Cotton, Flax, Jute, Viscose, Kevlar, Nomex, etc.) into a flat-laid open mesh, then supplied as a standalone roll or laminated carrier for integration into foil, non-woven, PVC, and technical textile stacks. The chemically bonded, non-woven-yarn construction gives the scrim lightweight, high strength, low shrinkage/low elongation, and corrosion resistance.
Fiberglass non-woven laid scrims Characteristics
0.8×0.8 ENDS Square-Mesh Properties: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, water resistance — the scrim survives laminating heat and long-term service cycles, while its low elongation restrains differential movement in the host composite.
High Strength & Light Weight: Available in a range of regular mesh sizes and grammages covering the platform's common specifications (12.5×12.5 / 10×10 / 6.25×6.25 / 5×5 / 12.5×6.25 mm etc.; regular supply grams 6.5g / 8g / 13g / 15.5g etc.), delivering high tensile and tear resistance at minimal added weight. Fully bondable with almost any material; each roll length 10,000 m to support efficient production.
Long Rolls for Converting Lines: 10,000 m roll length feeds high-speed laminating, coating, and slitting lines with fewer splice stops — fewer weak spots in finished rolls, better batch appearance.
Fiberglass non-woven laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Fiberglass non-woven laid scrims Application
Primary Use: General-Purpose Reinforcement Substrate for Non-Woven & Laminated Stacks

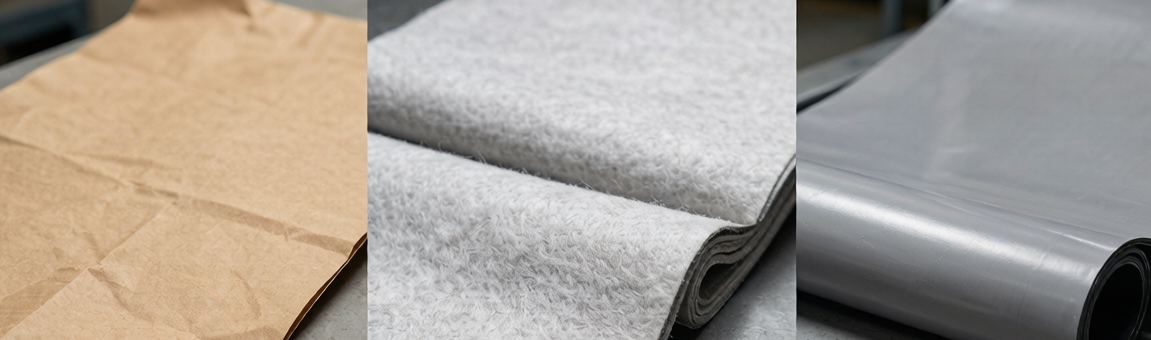

The core application of this 0.8×0.8 ENDS (12.5×12.5 mm) laid scrim is as the hidden tensile grid laminated into or between foil–kraft, non-woven mats, PVC carriers, and technical textile stacks where a converter needs multi-directional tensile, tear resistance, and dimensional stability without bulking the substrate. It is laminated into the host stack to upgrade mechanical performance at very low GSM, turning fragile or limp substrates into composites that survive handling, converting, and in-service loads.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
