Polyester mesh fabric Laid Scrims for medical blood-absorbing paper for Middle East Countries
Polyester Laid Scrims Brief Introduction

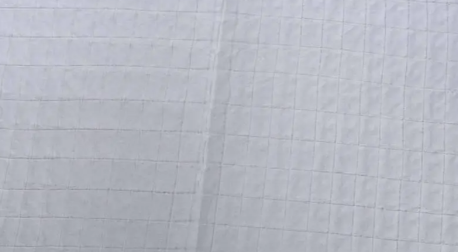

his product is a Polyester Laid Scrim, a cost-effective, high-performance reinforcement fabric engineered specifically for medical blood-absorbing paper supplied to Middle East markets (hospitals, clinical labs, surgical settings). It is manufactured by chemically bonding continuous polyester filament yarns into an open mesh construction (square or tri-directional), with binder options (PVOH, PVC, Acrylic, or customized) to match different medical paper laminating and converting processes. Per the page's opening definition: "Scrim is a cost-effective reinforcing fabric made from continuous filament yarn in an open mesh construction. The laid scrim manufacturing process chemically bonds non-woven yarns together, enhancing the scrim with unique characteristics."Compared with glass-fiber scrims, the polyester version offers softer hand-feel and better compatibility with disposable medical paper stacks — critical when the substrate must absorb fluid, resist tearing under gloved handling, and remain processable on medical paper converting lines. The scrim is laminated into or behind the blood-absorbing paper to become a hidden "tensile skeleton" that prevents the pad from falling apart when saturated.
Polyester Laid Scrims Characteristics
Medical-Paper Adapted Polyester Profile: While this page does not list a dedicated "Polyester Characteristics" block (unlike the tarpaulin/tape sibling pages), the polyester scrim's fit for medical blood-absorbing paper comes from its softer hand-feel vs. glass, compatibility with PVOH/Acrylic binders, and low-GSM reinforcement that does not compromise the paper's absorbency pathway or convertibility into sterile packs. The page notes Ruifiber "makes special scrims to order for specific usages and applications… designed to satisfy our customers' requests, and to be highly compatible with their process and product"— which is exactly the logic for medical-paper customization.
High Strength & Light Weight + Data Sheet: Regular specifications per the page table: CF12.5×12.5PH (12.5×12.5mm, 6.2–6.6 g/m²), CF10×10PH (10×10mm, 8–9 g/m²), CF6.25×6.25PH (6.25×6.25mm, 12–13.2 g/m²), CF5×5PH (5×5mm, 15.2 g/m²). Regular supply mesh also includes 12.5×6.25mm; regular supply grams noted on page: 6.5g, 8g, 13g, 15.5g etc. Page wording: "With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters."
Polyester Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Polyester Laid Scrims Application
Primary Use: Reinforcement for Medical Blood-Absorbing Paper

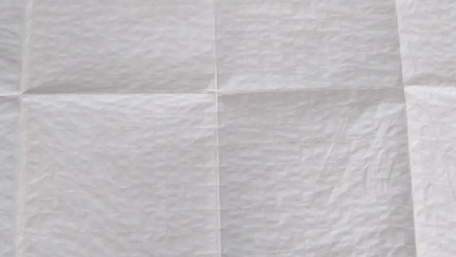

The core and specialized application of this polyester laid scrim is as a hidden tensile skeleton laminated into or behind medical blood-absorbing paper used in hospitals, clinical labs, and surgical settings across Middle East markets. It is laminated into the paper stack to:
Prevent Disintegration When Saturated
Blood-absorbing paper must pull fluid while staying intact through gloved handling, folding, and repetitive wiping. The scrim arrests tear propagation so the pad does not lint, split, or fall apart when saturated — critical for OR and emergency settings.
Add Handling Toughness Without Sacrificing Absorbency
The open mesh adds multi-directional tensile with minimal mass, so the paper stays flexible and conformable while gaining meaningful resistance to thumb-press tearing or edge fray during use — useful for patient-care wipes and sterile-pack components.
Enable Compatibility with Medical Converting Lines
With PVOH or compatible binders, the scrim is compatible with laminating and winding lines used in medical paper converting — allowing the reinforced paper to be processed, stacked, and sealed into sterile packs without adhesive oozing or ply separation.
Secondary Applications
Per the product page, this polyester (and glass-hybrid) laid scrim is also extensively applied in:
Aluminum Foil Composite
Non-woven laid scrim is widely applied in the aluminium foil industry; 10,000 m roll length helps manufacturers improve production efficiency and gives finished products better appearance.
PVC Flooring
PVC flooring is mainly made of PVC plus other necessary chemical materials via calendering or extrusion, divided into sheet and roller types. All major domestic and foreign manufacturers now apply laid scrim as the reinforcement layer to avoid joint separation or bulging between floor pieces caused by thermal expansion and contraction.
Non-Woven Category Reinforcement
Non-woven laid scrim is widely used as reinforcement on kinds of non-woven fabric, such as fiberglass tissue, polyester mat, wipes, and top-end items such as medical paper — increases tensile strength with minimal unit weight addition.
