Non-woven laid scrims laminated with fabric for first aid bag for reinforcement solutions
Non-woven laid scrims Brief Introduction
Designed for lamination with fabric substrates used in first aid bags, this laid scrim serves as a hidden tensile reinforcement layer placed between the bag’s outer fabric (polyester/nylon oxford, non-woven lining) and internal reinforcement plies. It is produced by chemically bonding continuous filament yarns into a flat-laid open mesh, available in square or tri-directional configurations, with binder options (PVOH, PVC, acrylic, or customized) to suit fabric lamination, thermal bonding, and converting processes. The chemically bonded construction delivers lightweight, high strength, low shrinkage/elongation, and corrosion resistance — enabling the first aid bag to withstand repeated opening/closing, heavy contents (shears, bandage rolls, cold packs), and fluid exposure during field use, while keeping the bag shell flexible and print/logo registration stable.
First-Aid-Bag Fabric Grade Property Profile: Dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, water resistance — the scrim’s low elongation prevents the bag shell from stretching at zipper zones, corner reinforcements, and carry-handle mounts under load, while multi-directional tensile arrests tear propagation when the bag is dropped, dragged, or overstuffed in field scenarios. Anti-microbial and water-resistant properties align with medical-environment exposure (blood, disinfectants, outdoor moisture).
High Strength & Light Weight: Available in a range of regular mesh sizes and grammages covering the platform’s common specifications (including fine to coarse grids, with typical grammages such as 6.5g, 8g, 13g, 15.5g per square meter, etc.), delivering high tensile and tear resistance at minimal added weight. Critical for carry bags where shell weight translates directly to field burden. Fully bondable with polyester, nylon, non-woven, and film stacks; each roll length up to 10,000 m to support continuous fabric-laminating lines.
Non-woven laid scrims Characteristics
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
Non-woven laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Non-woven laid scrims Application
Primary Use: Reinforcement for First Aid Bag Fabric Composites

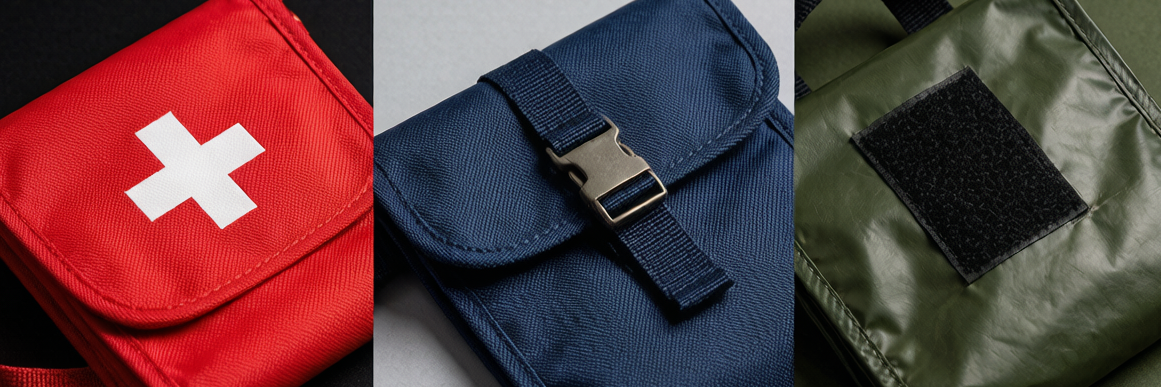

The core application of this fabric-laminated laid scrim is as the hidden tensile grid laminated between or onto the outer fabric and lining of first aid bags, trauma kits, EMS pouches, and vehicle/military medical packs. It is laminated into the fabric stack to:
Prevent Tear at Zippers, Corners & Handle Mounts
First-aid bags see rough handling — dropped from ambulance shelves, dragged across trunk floors, overstuffed during restock. The scrim adds multi-directional tensile and tear resistance at very low GSM, reinforcing the fabric–lining sandwich without bulking the shell or stiffening the fold zones.
Maintain Shell Dimensional Stability Under Load
The scrim’s low elongation keeps the bag shell flat through cutting, folding, and filling cycles, preserving print/logo registration and zipper alignment — useful for branded first-aid kits and EMT pouches where appearance and function both matter.
Enable Clean Fabric Laminating
With compatible binders (PVOH, hot-melt acrylic, etc.), the scrim feeds thermal-bonding and laminating lines without gumming or liner wrinkling — compatible with polyester/nylon oxford + non-woven lining stacks common to medical-bag converters.
Secondary Applications
a) Aluminum Foil Composite
b) PVC Flooring
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
