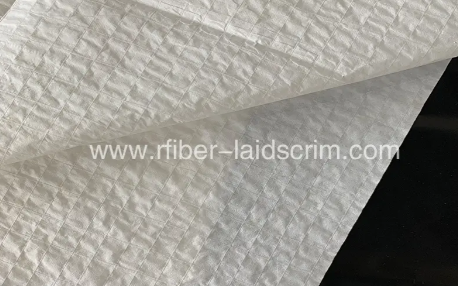

Non-woven Laid Scrim Laminated with Foam for Reinforcement Solutions
A composite reinforcement solution where a chemically bonded flat-laid scrim (glass/polyester/carbon/etc.) is laminated onto a foam carrier (PUR/PE/other flexible foams). The scrim supplies multi-directional tensile and tear resistance; the foam adds cushioning, thickness, and conformability. Together they form a lightweight, low-shrinkage, corrosion-resistant grid-backed foam that drops into automotive interior trim, seating, sound deadening, packaging cushioning, and tape/film laminates.
Non-woven Laid Scrim Laminated Characteristics
Foam+scrim synergy: Scrim = tensile/temperature/dimension stability; Foam = cushion/conform/bond surface. Low elongation of scrim prevents foam-composite creep or tear under load.
Property profile: Lightweight, high strength, low shrinkage/elongation, corrosion preventive, dimensional stability, tensile, tear resistance, optional fire/anti-microbial/water resistance per binder choice.
Process fit: Easily laminated with many kinds of materials — economical drop-in reinforcement vs conventional concepts (per page copy).
Non-woven laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Non-woven laid scrims Application
Primary – Foam-backed reinforcement composites
Automotive seat cushions, door-linings, headliners, rear shelves, undershields, outer wheel-arch liners, foams punched parts, engine casing & sound deadening (site’s Automotive list); plus packaging air-bubble/cushioning laminates, foam adhesive tapes, and flexible building/insulation facing backers. Scrim stops foam layer from splitting at folds/fasteners; foam hides scrim and gives touch/shape.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
Due to lightweight, high strength, low shrinkage/elongation, corrosion preventive, laid scrims offers tremendous value compared to conventional material concepts. And it's easily to laminate with many kinds of materials, this makes it has an extensive fields of applications.
