Polyester mesh laid scrims for reinforced PVC tarpaulin
Polyester mesh laid scrims Brief Introduction
This product is a Polyester Laid Scrim, a cost-effective, open-mesh reinforcement fabric engineered as the base skeleton for reinforced PVC tarpaulin — used in truck covers, light awnings, banners, and sail cloth. It is manufactured by chemically bonding continuous polyester filament yarns into a flat-laid open mesh (square or tri-directional), with binder options (PVOH, PVC, Acrylic, or customized) to match PVC coating, laminating, and heat-sealing processes. Compared with glass-fiber scrims, the polyester version offers softer hand-feel, heat sealability, and better conformability, making it well suited as the load-carrying grid laminated between PVC layers. Configurable: roll width 200–2,500 mm, roll length up to 10,000 m, yarn types (Polyester led, also Glass, Carbon, Kevlar, Nomex, etc.), construction square / tri-directional, patterns 0.8–3 yarns/cm.
Polyester mesh laid scrims Characteristics
PVC-Tarpaulin Adapted Polyester Properties: The scrim delivers dimensional stability, tensile strength, alkali resistance, tear resistance, fire resistance, anti-microbial properties, and water resistance — a profile that fits outdoor PVC tarpaulin exposed to wind, rain, UV, and repeated rigging/de-rigging.
High Strength & Light Weight: Regular specs: CF12.5×12.5PH (12.5×12.5mm, 6.2–6.6 g/m²), CF10×10PH (10×10mm, 8–9 g/m²), CF6.25×6.25PH (6.25×6.25mm, 12–13.2 g/m²), CF5×5PH (5×5mm, 15.2 g/m²); regular supply mesh also includes 12.5×6.25mm, and regular supply grams are 6.5g / 8g / 13g / 15.5g etc. With high strength and light weight, it can be fully bonded with almost any material.
Long Rolls for Wide-Format PVC Coating Lines: Each roll length can be 10,000 meters, which helps manufacturers improve production efficiency and gives finished products better appearance. Fewer splices per shift on wide-format PVC coating lines, fewer weak spots in finished tarpaulin rolls.
Polyester mesh laid scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Polyester mesh laid scrims Application
Primary Use: Base Reinforcement for PVC Tarpaulin, Truck Covers, Awnings, Banners & Sail Cloth
The core application of this polyester laid scrim is as the load-carrying mesh skeleton laminated between PVC coating layers for truck covers, light awnings, banners, and sail cloth. It is sandwiched into the PVC stack to:
Deliver Tear Propagation Resistance
The scrim turns a monolithic PVC film into a composite that resists initiation and spread of tears caused by wind flutter, sharp cargo edges, or repeated rigging — a frequent failure mode in truck covers and site shelters.
Maintain Flatness & Dimensional Stability Outdoors
The scrim's low elongation keeps the sheet from sagging, billowing, or pulling fixtures loose under sun, rain, and thermal cycles — preserving appearance and structural fixity on awnings, banners, and truck curtains.
Enable Wide-Format, Seamless Runs
With roll length up to 10,000 m and widths to 2,500 mm, the scrim feeds wide-format coating lines with fewer splices — fewer joint-related weak points in finished rolls, less material waste on start-stop.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.

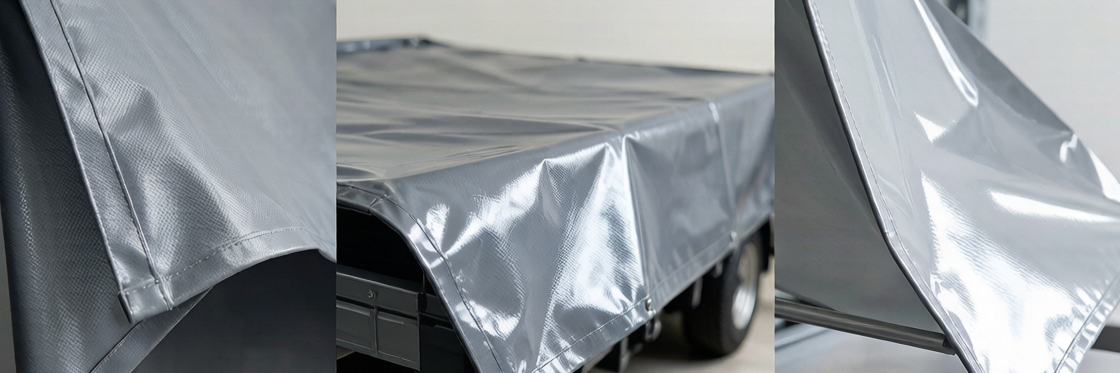

d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
