Fiberglass net fabric Laid scrims using for PVC FLOORING

Short Description:

Roll Width: 200 to 2500 mm

Roll Length:: Up to 50 000 m

Yarns Type:: Glass, Polyester, Carbon, Cotton, Flax, Jute, Viscose, Kevlar, Nomex,

Construction:: Square, tri-directional

Patterns:: From 0.8 yarns/cm to 3 yarns/cm

Bonding:: PVOH, PVC, Acrylic, customized

Send email to us Download as PDF

Product Detail

Product Tags

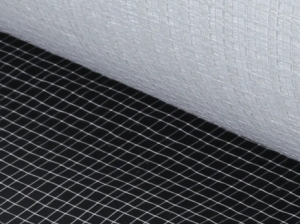

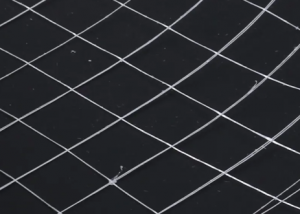

Fiberglass Laid Scrims Brief Introduction

This product is a Fiberglass Net Fabric Laid Scrim, a specialized open-mesh reinforcement material engineered specifically for PVC flooring applications. It is manufactured from high-tenacity glass fiber yarns woven or laid into a stable grid structure. Designed to be fully integrated into the flooring composite during production, its primary function is to provide critical dimensional stability and mechanical reinforcement. It effectively counteracts the internal stresses caused by thermal expansion and contraction of PVC and other core materials, thereby preventing deformation and ensuring the long-term flatness and integrity of the installed floor.

Fiberglass Laid Scrims Characteristics

High Tensile Strength & Tear Resistance: The glass fiber construction provides exceptional strength, significantly enhancing the flooring's resistance to pulling forces and punctures.

Excellent Dimensional Stability: The stable grid structure effectively restrains the movement of flooring materials, ensuring minimal shrinkage or expansion under varying temperature and humidity conditions.

Superior Material Properties: Inherits the inherent advantages of fiberglass, including alkali resistance, corrosion resistance, fire resistance, low elongation, and flexibility.

Lightweight & High Compatibility: Adds substantial reinforcement with minimal weight increase. It exhibits excellent bonding compatibility with PVC and other polymers used in flooring production. Available in long rolls to support efficient manufacturing.

Fiberglass Laid Scrims Data Sheet

Item No.	CF12.5*12.5PH	CF10*10PH	CF6.25*6.25PH	CF5*5PH
Mesh Size	12.5 x 12.5mm	10 x 10mm	6.25 x 6.25mm	5 x 5mm
Weight (g/m2)	6.2-6.6g/m2	8-9g/m2	12-13.2g/m2	15.2-15.2g/m2

The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.

Fiberglass Laid Scrims Application

a) Aluminum Foil Composite

Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.

b) PVC Flooring

PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.

c) None-woven category products reinforced

None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.

d) PVC Tarpaulin

Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.

Fiberglass net fabric Laid scrims using for PVC FLOORING is a fundamental reinforcement solution that addresses the core engineering challenge of dimensional instability in resilient flooring. By incorporating this high-strength, stable glass fiber grid, manufacturers can produce PVC flooring with superior resistance to environmental stresses, resulting in a final product that is flatter, more stable, less prone to deformation, and ultimately more durable and reliable for end-users. It is a widely adopted component in quality PVC flooring manufacturing.
