Fiberglass Laid Scrims for Flooring Product
Fiberglass Laid Scrims Brief Introduction
Chemically bonded flat-laid E-glass scrim as the lightweight, low-shrinkage tensile grid laminated/calendered into floor board systems — PVC sheet/roller flooring, wood flooring, carpet tiles, rigid/semi-rigid substrates. Low elongation + multi-directional tensile restrain thermal-expansion joint separation and surface bulge, keeping boards flat through calender/extrusion and service.
Fiberglass Laid Scrims Characteristics
Floor-board grade: Dimensional stability, tensile, alkali resistance, tear resistance, fire resistance, anti-microbial, water resistance — low elongation prevents PVC/wood/composite boards from cupping or seam-gapping under thermal cycles.
Light & strong: High strength-to-weight, fully bondable with almost any material; 10,000 m rolls (platform up to 50,000 m) lift laminating-line efficiency and finished appearance.
Mesh/gram options: 12.5×12.5 / 10×10 / 6.25×6.25 / 5×5 / 12.5×6.25 mm; 6.5 / 8 / 13 / 15.5 g/m².
Fiberglass Laid Scrims Data Sheet
|
Item No. |
CF12.5*12.5PH |
CF10*10PH |
CF6.25*6.25PH |
CF5*5PH |
|
Mesh Size |
12.5 x 12.5mm |
10 x 10mm |
6.25 x 6.25mm |
5 x 5mm |
|
Weight (g/m2) |
6.2-6.6g/m2 |
8-9g/m2 |
12-13.2g/m2 |
15.2-15.2g/m2 |
The regular supply of non-woven reinforcement and laminated scrim is 12.5x12.5mm,10x10mm,6.25x6.25mm, 5x5mm,12.5x6.25mm etc. The regular supply grams are 6.5g, 8g, 13g, 15.5g, etc.With high strength and light weight, it can be fully bonded with almost any material and each roll length can be 10,000 meters.
Fiberglass Laid Scrims Application

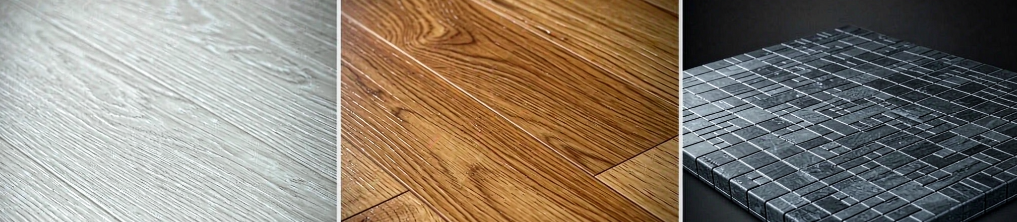

Primary – Floor board & flooring reinforcement
Laminated into PVC sheet/roller flooring, wood flooring, carpet tiles, ceramic backing, rigid floor boards. Arrests inter-seam opening and bulging from material thermal expansion/contraction; keeps board flat through press/calender and long-term foot traffic. 10,000 m rolls feed flooring calender/extrusion lines with fewer splices.
Secondary Applications
a) Aluminum Foil Composite
Nove-woven laid scrim is widely applied in aluminium foil industry. It can help manufacture to develop the production efficiency as the roll length can reach 10000m. It also makes the finished product with better apperance.
b) PVC Flooring
PVC Flooring is mainly made of PVC,also other necessary chemical material during manufacture. It is produced by calendering,extrusion progress or other manufacture progress, it is devided into PVC Sheet Floor and PVC Roller Floor. Now all major domestic and foreign manufactures are applying it as the reinforcement layer to avoiding the joint or bulge between pieces, which is caused by the heat expansion and contraction of materials.
c) None-woven category products reinforced
None-woven laid scrim is widely used as reinforced materail on kinds none-woven fabric, such as fiberglass tissue, polyester mat, wipes, also some top ends, such as medical paper. It can makes none-woven products with higher tensile strength,while just add very little unit weight.
d) PVC Tarpaulin
Laid scrim can be used as basic materials to produce truck cover,light awning, banner, sail cloth etc.
